Van thuỷ lực Hydromax cho bàn nâng - V3074

V3074

-@@

-#

-*

-D24

-DG

-25

1

3

4

5

6

7

8

1

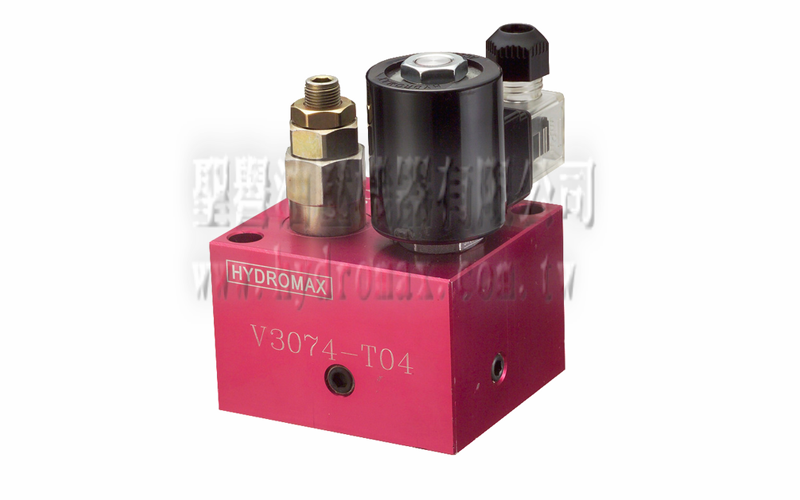

V3074

Van điện từ đóng mở - Cartridge solenoid check valve
V3074(10W-2)  Poppet 2-Way

T04:1/2" Piping Installed

3

-@@

Sơ đồ hoạt động  - Operation
20:Normally Closed
21:Normally Open
22:Normally Closed (Bi-directional Flow)
23:Normally Open (Bi-directional Flow)
24:Spool-Type, Normally Closed
25:Spool-Type, Normally Open

4

-#

Option:with filter
S:with filter
N:without filter

5

-*

Option:with manual
N:Option
P:Push-Style Manual Override
M:Screw-out Knob Style
    Screw-in Knob Style
T:Push and Twist Style

6

-D24

Coil Type　
D12:DC12V     D24:DC24V
A24:AC24V     A11:AC110V
A22:AV220V   A38:AC380V
RA1:RAC110V RA2:RAC220V

7

-DG

Terminations
DG:DIN43650
DL:Lead Wire(2)

8

-25

Max pressure
25:250bar(3550psi)
